Description

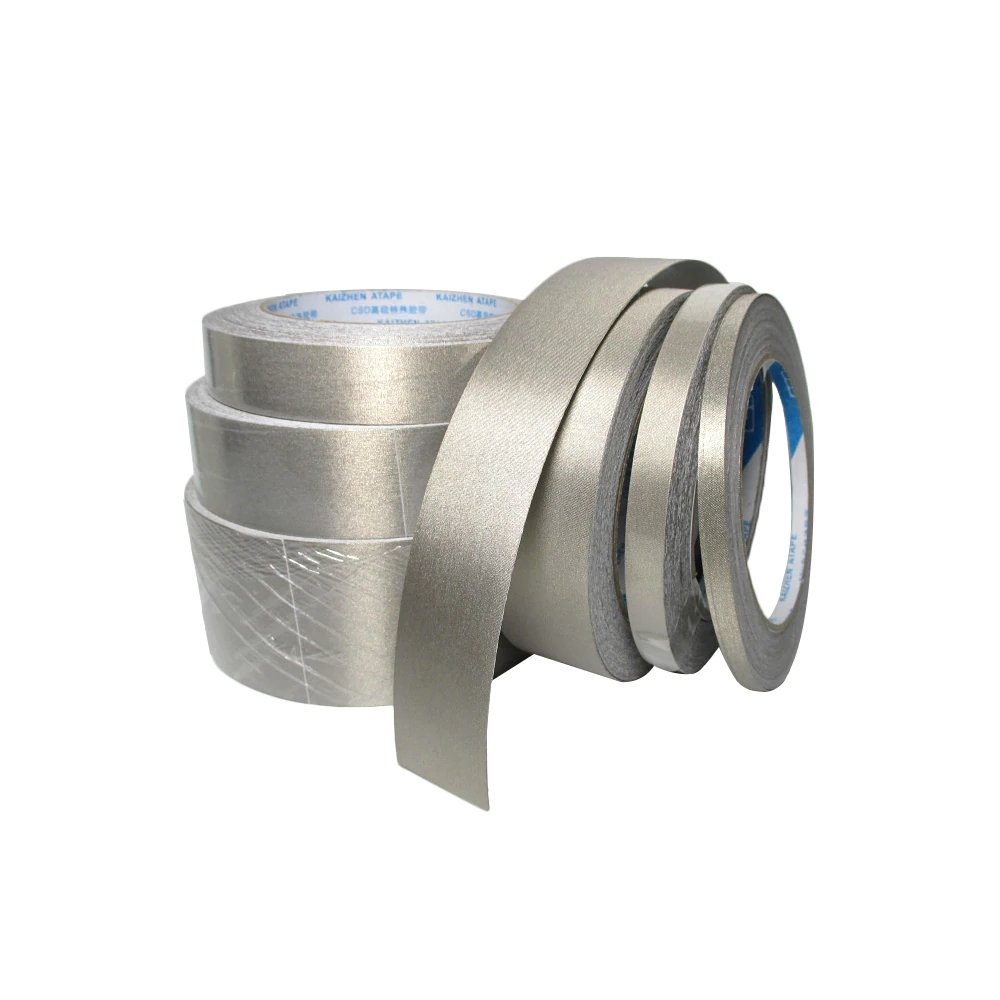

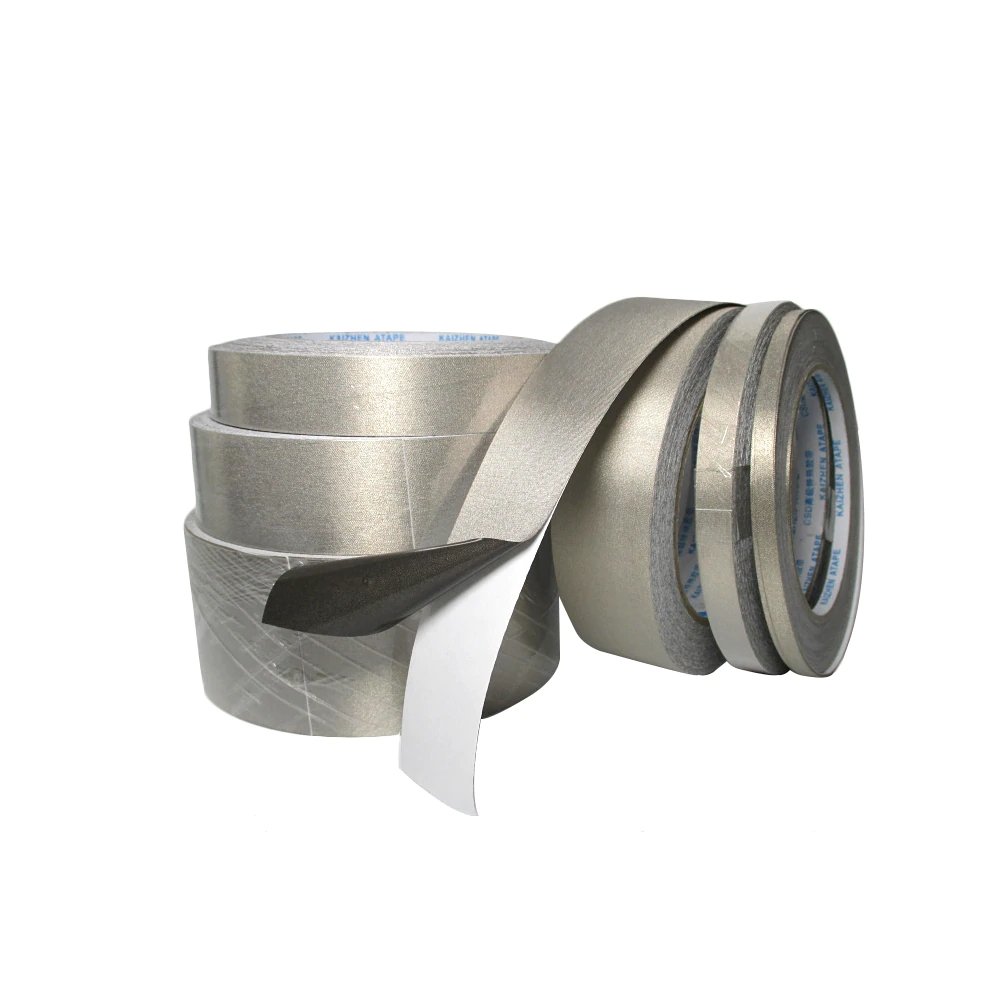

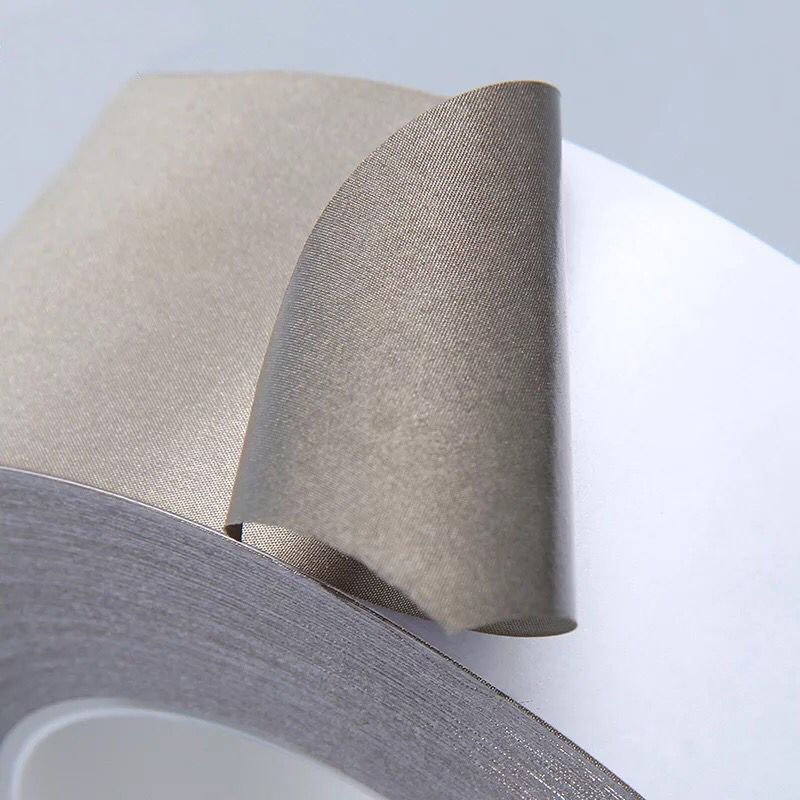

| Prouduct Description： Conductive double-sided tape is coated with high-performance acrylic pressure-sensitive adhesive with conductive nickel powder. It is mainly used for the bonding of conductive cloth and conductive foam, flexible circuit board, printed circuit board, EMI/RFI shield and pad. The connection of the pieces is bonded to the ground. Has good mechanical properties, electrical conductivity and environmental stability. |
| Size: | Custom |
| Material: | Polyester fiber cloth |
| Adhesive: | conductive resin |
| Base Material: | Conductive Fabric |
| Thickness: | around 0.12mm |
| Initial Adhension (N/25) : | 8N/25mm |
| Retentivity (hr/kg/25mm) : | >24 hr |
| Surface Impedance | <= 0.05 |
| Adhesive Impedance | <= 0.05mm |
| Shielding Efficiency (db) : | 65~85db |
| Recommend Using Temp. (C): | —20C ~ 80C |
